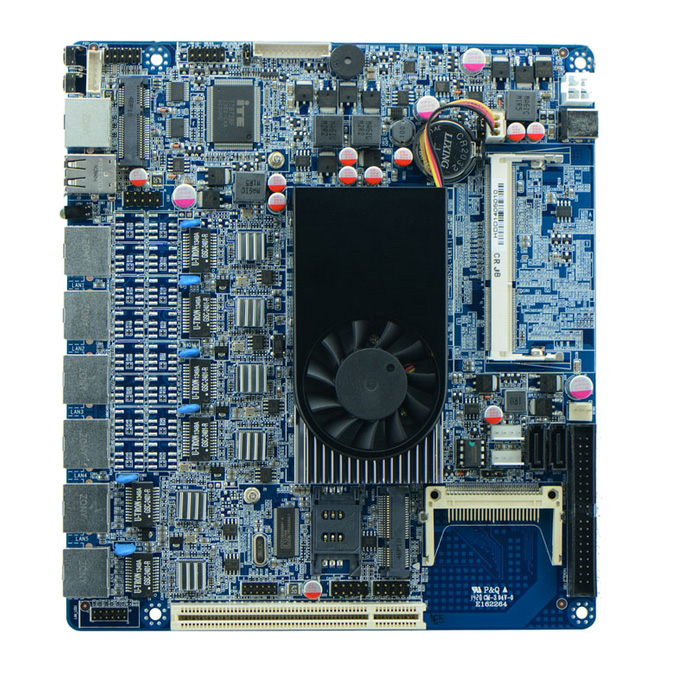

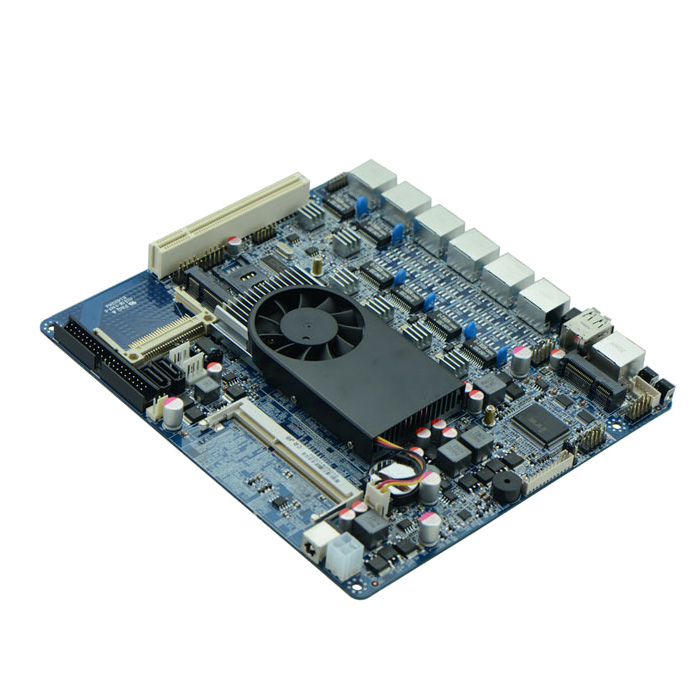

    Product Name:  Firewall mainboard AMITX-D525FL6
    Model No:  AMITX-D525FL6
    Commodity Numbers:  10000
    Browse Times:  2014/6/20 0:52:18
    Chat Using:

    --Onboard Intel Atom dual-core D525 Processor(1.8GHz)
    --Intel® ICH8M  Express Chipset
    --Support 1* SO DDRIII 1066/800MHz, Max. up to 2GB
    --Intel GMA3150 Graphics , VGA display output
    --1* PCI
    --1* MPCIE , support  USB wifi / 3G module
    --1* MSATA(support SSD/USB WIFI)
    --6* Intel® 82583V 10/100/1000Mbps Ethernet
    --2* SATAII 3Gb/s
    --1* CF
    --1* IDE
    --1* COM(CISCO standard interface)
    --1*RS232 COM
    --6* USB 2.0
    --6* RJ-45 LAN
    --DC_12V Single power supply
    --Dimension: 200mm x 180mm
