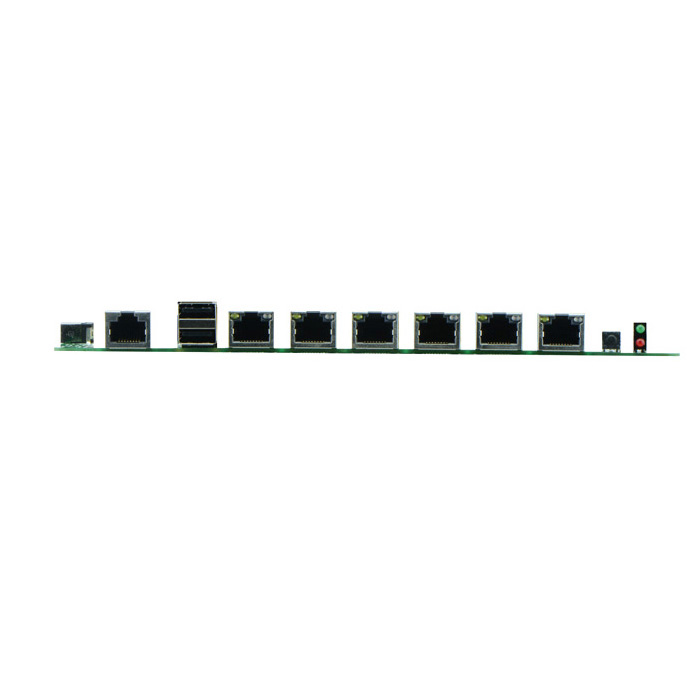

    Product Name:  Firewall motherboard AM-FWD2550L6DB
    Model No:  AM-FWD2550L6DB
    Commodity Numbers:  10000
    Browse Times:  2014-11-01 19:14:06
    Chat Using:

    --Onboard Intel® Atom D2550 dual-core Processor(1.86GHz)
    --Intel® ICH10R Chipset
    --Support 1* SO DDR3 800/1066MHz, Max. up to 4GB
    --Integrated Intel® GMA3600 Graphics,
    --1* MSATA, support SSD/USB WIFI
    --Integrated 6* Intel® 82583V 10/100/1000Mbps Ethernet,
    --Support Wake-on-LAN and PXE function.
    --supports 2 groups of BYPASS function.
    --4* SATAⅡ 3Gb/s
    --1* CF card
    --1* COM(CISCO standard interface)
    --1* RS232
    --6* USB 2.0
    --6* RJ-45 LAN
    --DC power supply
    --Dimension:220mm x 220mm
